Belmont Safety Hatch System with Front Mount Brackets
Belmont Safety Hatch System with Front Mount Brackets
Quantity
-
Detail
Hatch Systems
The Belmont Safety Hatch System with Front Mount Brackets is a complete solution for safe rooftop access when using a hatch from a fixed ladder. Open, close and secure the roof hatch from the safety of the ground, leaving hands free for climbing. An innovative built-in pole extends at top to ensure smooth transitions between the ladder and roof.
Features:
- System mounts directly to ladder for stability
- Ground level operation to open, close and secure hatch
- Safe transitions with built-in extension pole
- Manually operated drive unit with simple crank
- Installs on systems from 10' to 20' / 20 to 27 /
- For use on hatches from 30" square to 36" square
- Assembly required, padlock not included

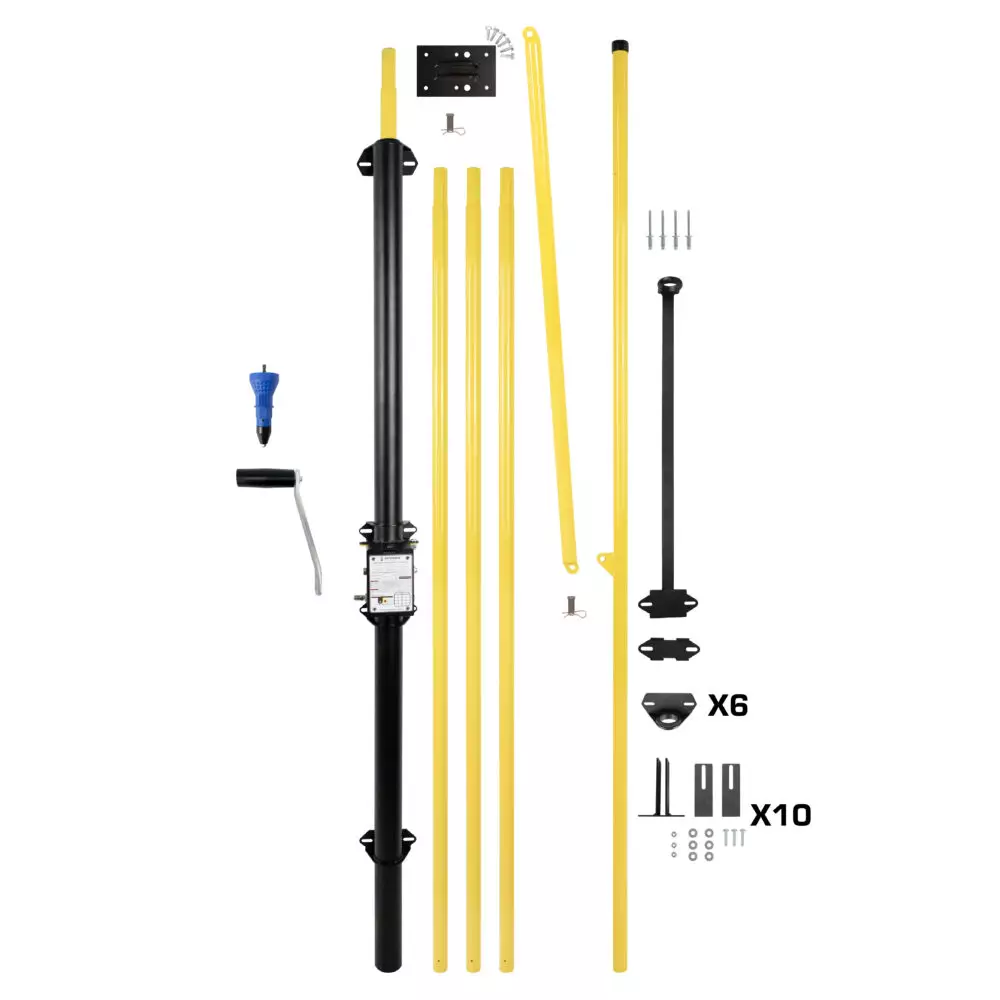

- Includes all required components and fasteners:
- (6) Brackets for front mounted installation on flat bar stock up to 1/2" thick and 4" deep (shims included for adjustability)
- (1) Lifting tube extension
- (2) Intermediate guide brackets
- (1) Drill bit rivet adapter
Specifications:
Materials: Powder coated steel, zinc plated steel fasteners Weight: 43.6 lbs. (19.8 kg) 50.8 lbs. (23.0 kg) 57.9 lbs. (26.3 kg) System Length: 10' to 20' (3.0 m to 6.1 m) 20' to 27' (6.1 m to 8.2 m) 27' to 34' (8.2 m to 10.4 m) System Capacity: 600 lbs. (272.2 kg) -
