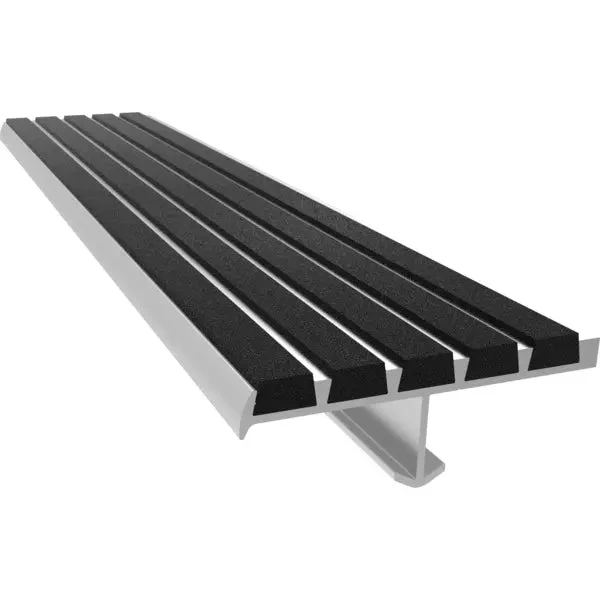

Ribbed Bar Nosing
Quantity
-
Detail
Economical and easy to install, Babcock-Davis Ribbed Bar Abrasive Nosing is designed for stairs and is perfect for indoor and outdoor poured concrete stair applications where extra safety is desired or required by code.
The ribbed abrasive grit can be customized for multi-color treads.
Features
- Anti-Slip Safety
- Continuous Color
- Optional Vision Line
- 14 Color Options
- Title 24 Compliant*
*Title 24 Compliant/Vision Impairment requires 2 inches of a contrasting color at the edge of the stair indicating a change of plane.
Specifications
Model BSTSB Channel Extruded Aluminum Application Concrete Poured, Steel Pan, Terrazzo or Wood Tread Ribbed Bar Abrasive or EcoTread Width 1-7/8", 3" or 4" Mounting Extruded Anchor or Drilled Holes Nosing Short, Short-Tipped, Long, or Angled Compliance California Title 24, Section 3306 Colors - Abrasive Grit: Black, Yellow, Photoluminescent, Gray, Brown, Burgundy, Green, Blue, Red or Buff (Orange)
- EcoTread: Black, Safety Yellow, Blue, Gray
Options Vision Line, Abrasive Colors, Mitered Cuts, Painted Undersides, and Taped Tops Warranty 1 Year Options
Download Stair Treads + Nosing Options
Colors shown give only an indication of shade.
Order Guide
Use the table below to guide specification of available options. The part number components are indicated in BOLD ORANGE text.
MODEL WIDTH TREAD NOSING INSTALL BSTSB-C1.875E-ECO 1-7/8" EcoTread Short Cast-In, Extruded Anchor BSTSB-C1.875E 1-7/8" Abrasive Grit Short Cast-In, Extruded Anchor BSTSB-C1.875D-ECO 1-7/8" EcoTread Short Drilled Hole, Mech. Fastened BSTSB-C1.875D 1-7/8" Abrasive Grit Short Drilled Hole, Mech. Fastened BSTSB-P1.875E-ECO 1-7/8" EcoTread Short-Tipped Cast-In, Extruded Anchor BSTSB-P1.875E 1-7/8" Abrasive Grit Short-Tipped Cast-In, Extruded Anchor BSTSB-L1.875E-ECO 1-7/8" EcoTread Long Cast-In, Extruded Anchor BSTSB-L1.875E 1-7/8" Abrasive Grit Long Cast-In, Extruded Anchor BSTSB-L1.875D-ECO 1-7/8" EcoTread Long Drilled Hole, Mech. Fastened BSTSB-L1.875D 1-7/8" Abrasive Grit Long Drilled Hole, Mech. Fastened BSTSB-A1.875D-ECO 1-7/8" EcoTread Angled - Long Drilled Hole, Mech. Fastened BSTSB-A1.875D 1-7/8" Abrasive Grit Angled - Long Drilled Hole, Mech. Fastened BSTSB-C3E-ECO 3" EcoTread Short Cast-In, Extruded Anchor BSTSB-C3E 3" Abrasive Grit Short Cast-In, Extruded Anchor BSTSB-C3D-ECO 3" EcoTread Short Drilled Hole, Mech. Fastened BSTSB-C3D 3" Abrasive Grit Short Drilled Hole, Mech. Fastened BSTSB-P3E-ECO 3" EcoTread Short-Tipped Cast-In, Extruded Anchor BSTSB-P3E 3" Abrasive Grit Short-Tipped Cast-In, Extruded Anchor BSTSB-L3E-ECO 3" EcoTread Long Cast-In, Extruded Anchor BSTSB-L3E 3" Abrasive Grit Long Cast-In, Extruded Anchor BSTSB-L3D-ECO 3" EcoTread Long Drilled Hole, Mech. Fastened BSTSB-L3D 3" Abrasive Grit Long Drilled Hole, Mech. Fastened BSTSB-A3E-ECO 3" EcoTread Angled - Long Cast-In, Extruded Anchor BSTSB-A3E 3" Abrasive Grit Angled - Long Cast-In, Extruded Anchor BSTSB-A3D-ECO 3" EcoTread Angled - Long Drilled Hole, Mech. Fastened BSTSB-A3D 3" Abrasive Grit Angled - Long Drilled Hole, Mech. Fastened BSTSB-C4E-ECO 4" EcoTread Short Cast-In, Extruded Anchor BSTSB-C4E 4" Abrasive Grit Short Cast-In, Extruded Anchor BSTSB-C4D-ECO 4" EcoTread Short Drilled Hole, Mech. Fastened BSTSB-C4D 4" Abrasive Grit Short Drilled Hole, Mech. Fastened BSTSB-P4E-ECO 4" EcoTread Short-Tipped Cast-In, Extruded Anchor BSTSB-P4E 4" Abrasive Grit Short-Tipped Cast-In, Extruded Anchor -
