Photoluminescent Two-Part Ribbed Bar Abrasive Nosing
Quantity
-
Detail

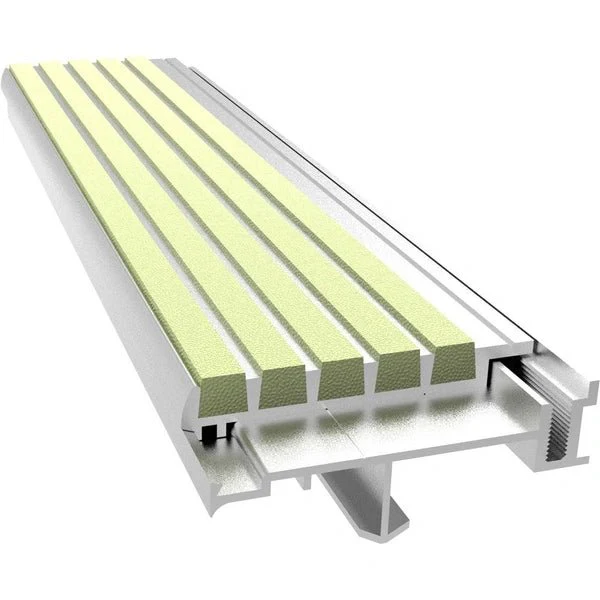

Babcock-Davis' Two-Part Ribbed Abrasive Stair Nosing is designed to save your stair treads during the construction phase.
The sub-channel and plywood inserts are installed during the construction phase. When the building is near completion, the temporary plywood tread is replaced with the final install of the abrasive anti-slip safety material.
Features
- Anti-Slip Safety
- Continuous Color
- Optional Vision Line
- 9 Color Options
- Title 24 Compliant*
Title 24 Compliant/Vision Impairment requires 2 inches of a contrasting color at the edge of the stair indicating a change of plane.
Specifications
Model BSTTB Channel Extruded Aluminum Color Photoluminescent Application Poured Concrete, Steel Pan or Terrazzo Tread Ribbed Bar Abrasive Width 3-3/8" Mounting Extruded Anchor Nosing Short-Tipped Compliance California Title 24, Section 3306 Options Vision Line, Abrasive Colors, Mitered Cuts, Painted Undersides and Taped Tops Warranty 1 Year Options
Download Stair Treads + Nosing Options
Colors shown give only an indication of shade.
Order Guide
Use the table below to guide specification of available options. The part number components are indicated in BOLD ORANGE text.
MODEL WIDTH TREAD INSTALL BSTTB-3.375E 3-3/8" Short Tipped Extruded Anchor -
