Double Door AcousticMAX Y

Quantity
ADD TO CART
BUY IT NOW
  • Detail

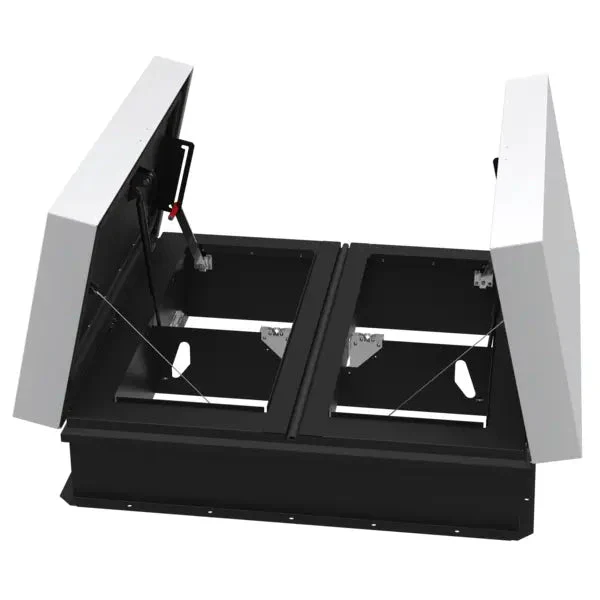

    Block the intrusion of exterior environmental noise with Babcock-Davis' new STC 50 Double Door Acoustical Smoke Vent.

    Designed for performing arts centers and theaters, every detail has been designed with precision.

    Features

    • STC 50 - OITC 39
    • Innovative Sound Control
    • Superior Thermal Performance
    • Pre-Finished Black Interior

    Specifications

    Model BSVY
    Door Double Leaf
    Sound Rating Sound Transmission Class (STC) 50
    Outdoor-Indoor Transmission Class (OITC) 39
    Material 14 gauge galvanneal steel
    Finish Inside: Powder Coat, Black
    Outside: Powder Coat, High Reflectance White
    Cover Metal with liner, withstands a live load of 40psf
    Curb Double wall curb with easy tab counterflash and mounting flange
    Insulation Mineral wool with sound mat in cover and curb; total R-14
    Hardware Stainless steel heavy-duty pintle hinge. Gas spring with damper open cover against 10psf load. Zinc plated hold open arm.
    Latch Zinc plated steel rotary latch designed to hold covers closed against 90psf wind uplift
    Certification UL 793 listed, optional FM 4330 approved
    Minimum Size 48 inches by 48 inches
    Maximum Size 72 inches by 120 inches
    Warranty 5 years


    Order Guide

    Use the table below to guide specification of available options. The part number components are indicated in BOLD ORANGE text.

    MODEL WIDTH X LENGTH DOOR CURB OPENING LINK TEMP CLOSING OPTIONS

    BSVYG

    X

    D

    R

    48" x 48"
    48" x 72"
    48" x 96"
    60" x 60"
    60" x 96"
    60" x 120"
    72" x 72"
    72" x 96"

    Additional size options also available.     		D - Double Door 2 - Double Wall
    3 - Curb Mount    		 N - No Electrical
    L - 24VDC/24VAC
    H - 110VAC / 240VAC
    A - Linear Actuator    		 165
    212
    280
    350
    360
    450    		 R - Rooftop Close
    W - Manual Winch
    L - Linear Actuator    		 SFM - FM Labeled
    OP1 - Door Position Sensor
    B__ - Burglar Bars
