Tile Ready Access Door
Quantity
-
Detail

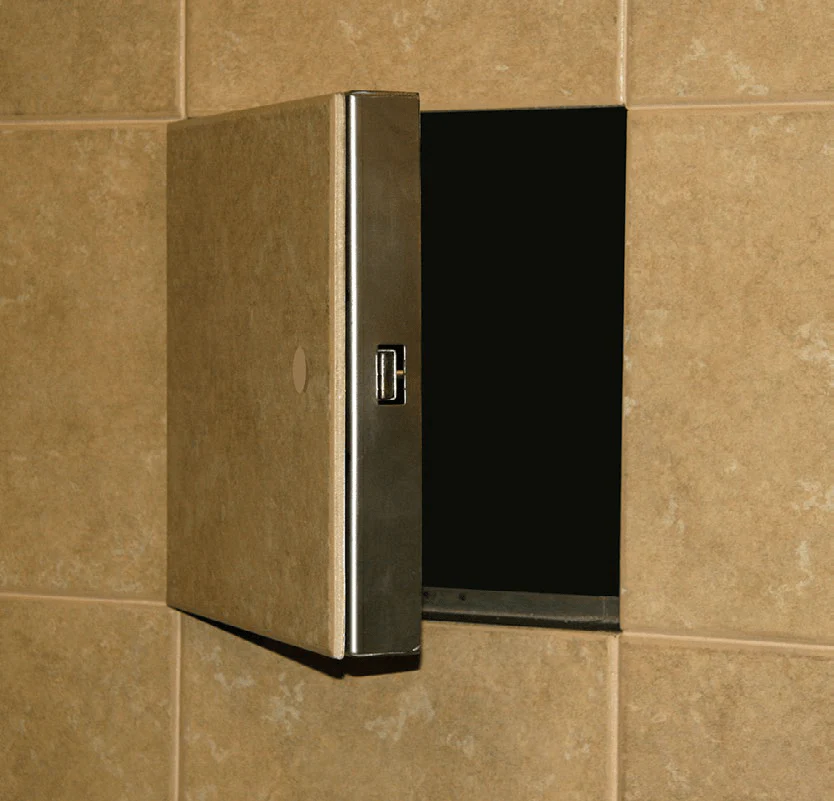

The Babcock-Davis Tile Ready Access Door is fire-rated, uninsulated and provides access through openings in vertical surfaces for ceramic tile applications.
When installed, the door and frame is concealed, providing an aesthetically pleasing appearance.
Features
- Fire-Rated
- Self-Closing
- Tile Wall Installation
- Custom Sizing
Specifications
Model BRUT/BRUW Door 14 gauge Steel Frame 16 gauge Steel Size Min: 10 inches by 10 inches
Max: 24 inches by 24 inchesInstallation Wall Flange 1 inch Exposed or Drywall Bead Hinge Cabinet Certification UL listed "B" label for 1-1/2 hours Warranty 1 year Options Flanges, Latches, and Materials Order Guide
Use the table below to guide specification of available options. The part number components are indicated in BOLD ORANGE text.
Rough opening is door size + 1/4 inch minimum.BASE FLANGE LATCH WIDTH X LENGTH OPTIONS BRU
X
T - 1 inch Flange
W - Drywall BeadK - Knurled Knob / Key Operated Latch Bolt
M - Mortise Lock Prep (1-1/8")Standard Sizes (in.)
10 x 10
12 x 12
16 x 16
18 x 18
24 x 24S - Stainless Steel, Type 304
Additional sizes available, call for more information.
-
