Draft Stop Access Door

Quantity
ADD TO CART
BUY IT NOW
  • Detail

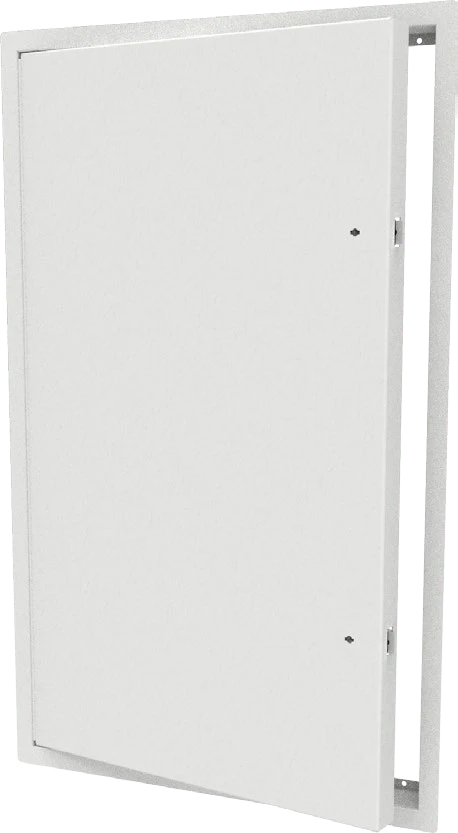

    The Babcock-Davis Draft Stop Door is a non-rated access door designed to provide access through draft stop spaces in the attic while preventing a back draft from one section of the attic to another.

    This self-closing and self-latching access door allows for access from both sides of the door.

    Features

    • Wall Installation
    • Self-Closing
    • Custom Sizing

    Specifications

    Model BDT/BDW/BDP
    Door 14 gauge Steel (self-closing)
    Frame 16 gauge Steel
    Size Min: 6 inches by 6 inches
    Max:
    • BDT: 24 inches by 72 inches, 36 inches by 60 inches or 48 inches by 48 inches
    • BDW/BDP: 36 inches by 48 inches
    Installation Wall
    Flange 1 inch Exposed or Drywall Bead
    Hinge BDT: Flush Continuous Piano
    BDW/BDP: Concealed Pin
    Finish White Powder Coat
    Warranty 1 year
    Options Flanges, Latches, Materials, Gaskets, Anchors

    Order Guide

    Use the table below to guide specification of available options. The part number components are indicated in BOLD ORANGE text.

    BASE FLANGE LATCH WIDTH X LENGTH OPTIONS

    BD

    X
    T - 1 inch Flange
    W - Drywall Bead
    P - Plaster Bead
    K - Knurled Knob / Key Operated Latch Bolt
    M - Mortise Lock Prep (1-1/8")
    Standard Sizes (in.)
    22 x 36 30 x 30
    24 x 36 30 x 36
    24 x 48 36 x 36
    24 x 60 36 x 48
    B - Galvannealed
    G - Gasketing
    S - Stainless Steel, Type 304
    Rough opening is door size + 1/4 inch minimum.
    Additional sizes available, call for more information.
